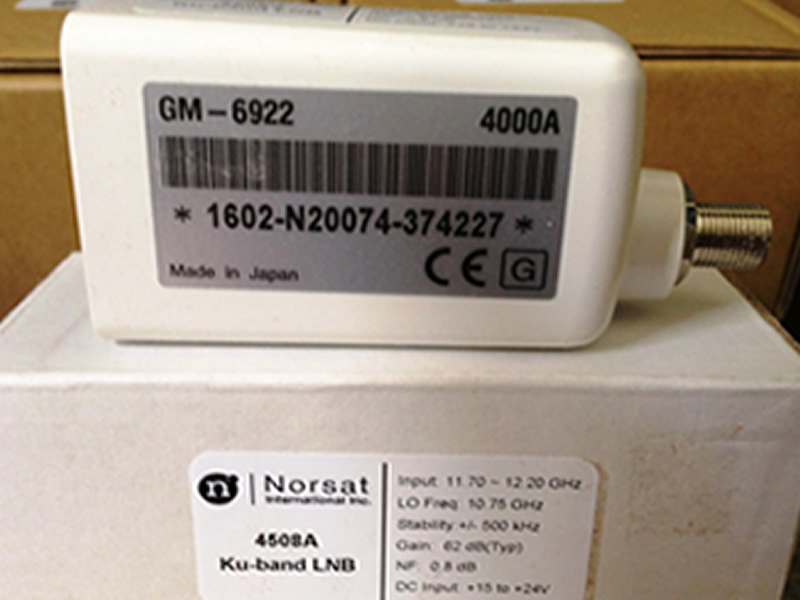

Descripción: El dispositivo para recepción satelital de alto rendimiento para la Banda KU.
Características y especificaciones:
Noise figure | 0.6 to 0.8 dB depending on model number |
L.O. stability (over temperature excl offset) |
±150 kHz to ±500 kHz depending on model number |
Phase noise (SSB) | -65 dBc/Hz at 1 kHz -80 dBc/Hz at 10 kHz -100 dBc/Hz at 100 kHz |
Input VSWR & Output VSWR | 2.2:1 |
Conversion gain | 62 dB |
Output P1dB | 8 dBm |
Power requirements | +15 to + 24 V supplied through center conductor of IF cable |
Current drain | 120 mA |
Input Waveguide | WR75 |
Dimensions | 85 (L) x 43 (W) x 43 (H) mm (3.3 x 1.7 x1.7 in) |
Weight | 120 g / 4.2 oz |
Temperature Range | -40°C to +60°C |
