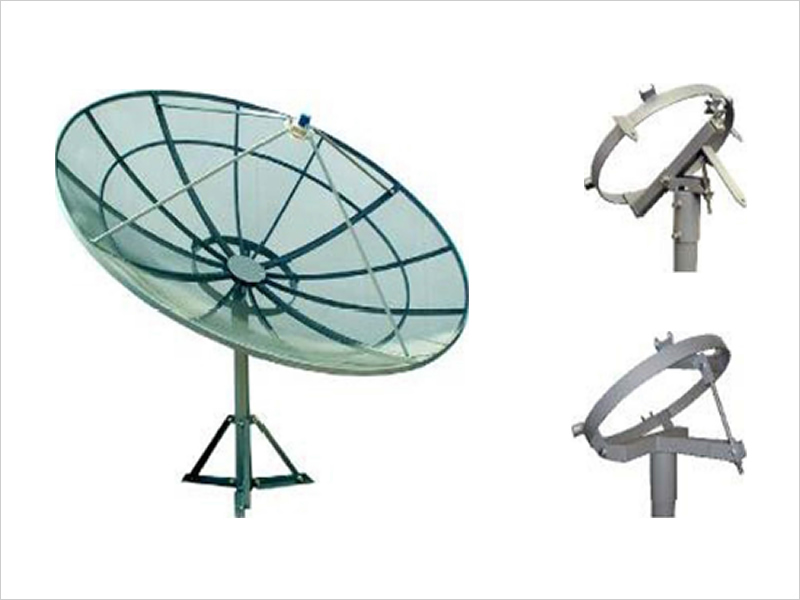

Descripción: La antena clásica y comercial de todos los tiempos con LNBF 13°K y material de instalación sin costo.
Características y especificaciones:
| MODEL | M-300-A / M-300-P |
|---|---|
| DISH DIAMETER | 10' (3 Mts) |
| F/D | .350 |
| FOCAL LENGTH | 41" (104.14 cm) |
| GAIN @ 4 Ghz | 40.15 dBi |
| GAIN @ 12 GHZ | 49.15 dBi |
| SECTIONS | 4, T-6 ALUMINUM RIBS |
| DISH MATERIAL | ALUMINUM .034" FLATENED PREFORMED MICRO MESH ATTACHED, C / Ku |
| MOUNT MATERIAL | STEEL, 24" RING DIAMETER |
| POLE SIZE | 3.5" O.D. |
| FINISH | GRAY ELECTROSTATIC POWDER COATING |
| BOX DIMENTIONS | MOUNT: 25" x 25" x 9" |
| DISH: 64 " x 64 " x 7" | |
| WEIGTH | 106 Lbs |
| 45' H.C. CONTAINER | 135 Pz |
| 53' TRUCK LOAD | 156 Pz |
