Descripción: Convertido de bajo ruido para Banda KU.
Características y especificaciones:

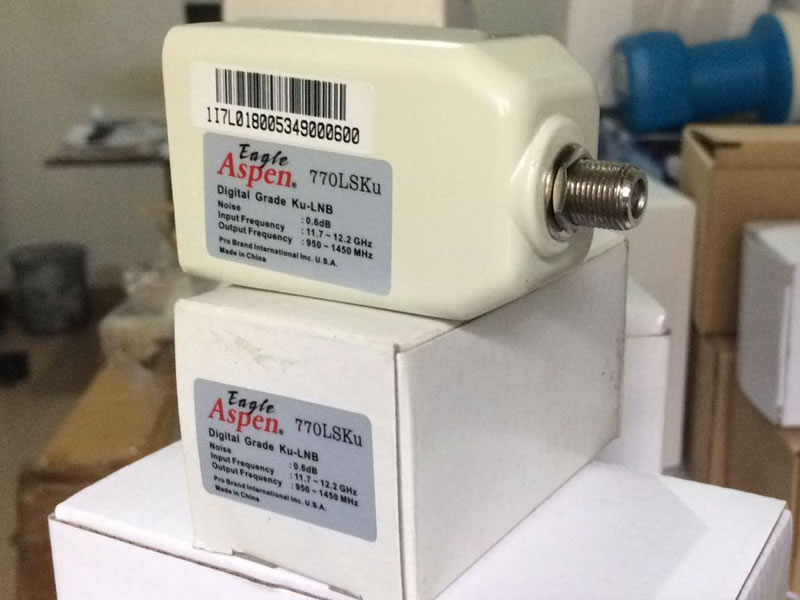

• Eagle Aspen 0.6 Ku Digital #770SLKu
• Input 11.7-12.2 GHz
• LO Frequency: 950-1450 MHz
• Weight 5.6 oz
| I/P Frequency: | 11.7-12.2 GHz |
| O/P Frequency: | 950-1450 MHz |
| LO Frequency: | 10750 |
| Initial Setting Accuracy at 23 °C: | ± 500 kHz |
| Conversion Gain: | 50 to 62 dB (typical) |
| Gain Flatness: | ± 0.5 dB/24 MHz |
| Cross Pol. Isolation: | 25 dB (min.) |
| Image Rejection: | 40dB (min.) |
| O/P VSWR: | 2.0:1 |
| O/P Power @ 1 dB Compression: | 0 dBm (min.) |
| Current Consumption: | 110 Ma |
| DC Voltage: | 10.5 - 21 V DC |
| LO Stability: | (-35 °C to +52 °C) ± 2.0 MHz |
| LO Phase Noise(kHz offset): | -60 dBc/Hz @ 1 -80 dBc/Hz @ 10 -90 dBc/Hz @ 100 |
| Noise Figure: | 0.8 dB (max.) |
| O/P Spurious: | -60 dBm (min.) |
| O/P ports: | 1 |
| O/P Port Type: | 75 W F-Female |
| Waveguide Interface: | WR-75 |
| Working Temperature: | -35 °C to 52 °C |
| Humidity: | 0-100% |
